AccuPower® qPCR Array System: Human Cancer qPCR panel kit (96 well plate)

AccuPower® qPCR Array System: Human Cancer qPCR panel kit는 GreenStar™로 최적화되어 있습니다. 암 관련 유전자들은 apoptosis invasion & metastasis, angiogenesis, oncogenes & tumor suppressor, signal transduction & transcription factors, cell cycle & DNA damage repair의 항목 88종과 보정 유전자 8종으로 구성되어 있습니다.

Inquire
SKU
S-6042-PH1

Accupower® qPCR Array System: Human Cancer panel은 GreenStar™로 최적화되어 있으며, 암 관련 유전자 88종과 보정 유전자 8종으로 구성되어 있습니다. 암 관련 유전자들은 아래와 같은 항목 관련 유전자들로 구성되어 있습니다.

  • Apoptosis invasion & metastasis
  • Angiogenesis
  • Oncogenes & tumor suppressor
  • Signal transduction & transcription factors
  • Cell cycle & DNA damage repair



Click here for more information (Human cancer panel)

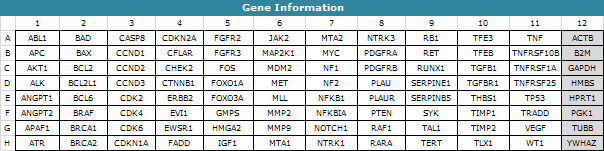

# Well Gene symbol Accession # Description Gene name
1 A1 ABL1 NM_005157,
NM_007313
ABL proto-oncogene 1, non-receptor tyrosine kinase RP11-83J21.1, ABL, JTK7, bcr/abl, c-ABL, c-ABL1, p150, v-abl
2 B1 AKT1 NM_001014431, NM_001014432, NM_005163 v-akt murine thymoma viral oncogene homolog 1 AKT, CWS6, PKB, PKB-ALPHA, PRKBA, RAC, RAC-ALPHA
3 C1 ALK NM_004304 Anaplastic lymphoma receptor tyrosine kinase CD246, NBLST3
4 D1 ANGPT1 NM_001146, NM_001199859 Angiopoietin 1 AGP1, AGPT, ANG1
5 E1 ANGPT2 NM_001118887, NM_001118888, NM_001147 Angiopoietin 2 AGPT2, ANG2
6 F1 APAF1 NM_001160, NM_013229, NM_181861, NM_181868, NM_181869 Apoptotic peptidase activating factor 1 APAF-1, CED4
7 G1 APC NM_000038, NM_001127510, NM_001127511 Adenomatous polyposis coli AI047805, AU020952, AW124434, CC1, Min, mAPC
8 H1 ATR NM_001184 ATR serine/threonine kinase FCTCS, FRP1, MEC1, SCKL, SCKL1
9 A2 BAD NM_004322, NM_032989 BCL2-associated agonist of cell death BBC2, BCL2L8
10 B2 BAX NM_001291428, NM_001291429, NM_001291430, NM_001291431, NM_004324, NM_138761, NM_138763, NM_138764 BCL2-associated X protein BCL2L4
11 C2 BCL2 NM_000633, NM_000657 B-cell CLL/lymphoma 2 Bcl-2, PPP1R50
12 D2 BCL2L1 NM_001191, NM_138578 BCL2-like 1 RP5-857M17.3, BCL-XL/S, BCL2L, BCLX, BCLXL, BCLXS, Bcl-X, PPP1R52, bcl-xL, bcl-xS
13 E2 BCL6 NM_001130845, NM_001134738, NM_001706 B-cell CLL/lymphoma 6 BCL5A, LAZ3, ZBTB27, ZNF51, BCL6
14 F2 BRAF NM_004333 B-Raf proto-oncogene, serine/threonine kinase B-RAF11, NS7, RAFB1, BRAF
15 G2 BRCA1 NM_007294, NM_007297, NM_007298, NM_007299, NM_007300 Breast cancer 1, early onset BRCAI, BRCC1, BROVCA1, FANCS, IRIS, PNCA4, PPP1R53, PSCP, RNF53
16 H2 BRCA2 NM_000059 Breast cancer 2, early onset RP11-298P3.4, BRCC2, BROVCA2, FACD, FAD, FAD1, FANCD, FANCD1, GLM3, PNCA2, XRCC11
17 A3 CASP8 NM_001080124, NM_001080125, NM_001228, NM_033355, NM_033356, NM_033358 Caspase 8, apoptosis-related cysteine peptidase ALPS2B, CAP4, Casp-8, FLICE, MACH, MCH5
18 B3 CCND1 NM_053056 Cyclin D1 BCL1, D11S287E, PRAD1, U21B31
19 C3 CCND2 NM_001759 Cyclin D2 KIAK0002, MPPH3
20 D3 CCND3 NM_001136017, NM_001136125, NM_001136126, NM_001287427, NM_001287434, NM_001760 Cyclin D3 RP5-973N23.3
21 E3 CDK2 NM_001290230, NM_001798, NM_052827 Cyclin-dependent kinase 2 CDKN2, p33(CDK2)
22 F3 CDK4 NM_000075 Cyclin-dependent kinase 4 CMM3, PSK-J3
23 G3 CDK6 NM_001145306, NM_001259 Cyclin-dependent kinase 6 MCPH12, PLSTIRE
24 H3 CDKN1A NM_000389, NM_001220777, NM_001220778, NM_001291549, NM_078467 Cyclin-dependent kinase inhibitor 1A (p21, Cip1) CAP20, CDKN1, CIP1, MDA-6, P21, SDI1, WAF1, p21CIP1
25 A4 CDKN2A NM_000077, NM_001195132, NM_058195, NM_058197 Cyclin-dependent kinase inhibitor 2A ARF, CDK4I, CDKN2, CMM2, INK4, INK4A, MLM, MTS-1, MTS1, P14, P14ARF, P16, P16-INK4A, P16INK4, P16INK4A, P19, P19ARF, TP16
26 B4 CFLAR NM_001127183, NM_001127184, NM_001202515, NM_001202516, NM_001202517, NM_001202518, NM_001202519, NM_003879 CASP8 and FADD-like apoptosis regulator CASH, CASP8AP1, CLARP, Casper, FLAME, FLAME-1, FLAME1, FLIP, I-FLICE, MRIT, c-FLIP, c-FLIPL, c-FLIPR, c-FLIPS
27 C4 CHEK2 NM_001005735, NM_001257387, NM_007194, NM_145862 Checkpoint kinase 2 RP11-436C9.1, CDS1, CHK2, HuCds1, LFS2, PP1425, RAD53, hCds1
28 D4 CTNNB1 NM_001098209, NM_001098210, NM_001904 Catenin (cadherin-associated protein), beta 1, 88kDa OK/SW-cl.35, CTNNB, MRD19, armadillo
29 E4 ERBB2 NM_001005862, NM_001289936, NM_001289937, NM_001289938, NM_004448 Erb-b2 receptor tyrosine kinase CD340, HER-2, HER-2/neu, HER2, MLN 19, NEU, NGL, TKR1
30 F4 MECOM NM_001105077, NM_001105078, NM_001163999, NM_001164000, NM_001205194, NM_004991, NM_005241 MDS1 and EVI1 complex locus hCG_1640438, AML1-EVI-1, EVI1, MDS1, MDS1-EVI1, PRDM3
31 G4 EWSR1 NM_001163285, NM_001163286, NM_001163287, NM_005243, NM_013986 EWS RNA-binding protein 1 AC002059.7, EWS, bK984G1.4
32 H4 FADD NM_003824 Fas (TNFRSF6)-associated via death domain GIG3, MORT1
33 A5 FGFR2 NM_000141, NM_001144913, NM_001144914, NM_001144915, NM_001144916, NM_001144917, NM_001144918, NM_001144919, NM_022970, NM_023029 Fibroblast growth factor receptor 2 BBDS, BEK, BFR-1, CD332, CEK3, CFD1, ECT1, JWS, K-SAM, KGFR, TK14, TK25
34 B5 FGFR3 NM_000142, NM_001163213, NM_022965 Fibroblast growth factor receptor 3 ACH, CD333, CEK2, HSFGFR3EX, JTK4
35 C5 FOS NM_005252 FBJ murine osteosarcoma viral oncogene homolog AP-1, C-FOS, p55
36 D5 FOXO1 NM_002015 Forkhead box O1 FKH1, FKHR, FOXO1A
37 E5 FOXO3 NM_001455, NM_201559 Forkhead box O3 AF6q21, FKHRL1, FKHRL1P2, FOXO2A, FOXO3
38 F5 GMPS NM_003875 Guanine monphosphate synthase
39 G5 HMGA2 NM_001300918, NM_001300919, NM_003483, NM_003484 High mobility group AT-hook 2 BABL, HMGI-C, HMGIC, LIPO, STQTL9
40 H5 IGF1 NM_000618, NM_001111283, NM_001111284, NM_001111285 Insulin-like growth factor 1 IGF-IA, IGFI, IGF1
41 A6 JAK2 NM_004972 Janus kinase 2 JTK10, THCYT3
42 B6 MAP2K1 NM_002755 Mitogen-activated protein kinase kinase 1 CFC3, MAPKK1, MEK1, MKK1, PRKMK1
43 C6 MDM2 NM_001145337, NM_001145339, NM_001145340, NM_001278462, NM_002392 MDM2 proto-oncogene, E3 ubiquitin protein ligase ACTFS, HDMX, hdm2
44 D6 MET NM_000245, NM_001127500 MET proto-oncogene, receptor tyrosine kinase AUTS9, HGFR, RCCP2,c-Met
45 E6 KMT2A NM_001197104, NM_005933 Lysine (K)-specific methyltransferase 2A hCG_1732268, ALL-1, CXXC7, HRX, HTRX1, MLL, MLL/GAS7, MLL1, MLL1A, TET1-MLL, TRX1, WDSTS
46 F6 MMP2 NM_001127891, NM_001302508, NM_001302509, NM_001302510, NM_004530 Matrix metallopeptidase 2 (gelatinase A, 72kDa gelatinase, 72kDa type IV collagenase) CLG4, CLG4A, MMP-2, MMP-II, MONA, TBE-1
47 G6 MMP9 NM_004994 Matrix metallopeptidase 9 (gelatinase B, 92kDa gelatinase, 92kDa type IV collagenase) CLG4B, GELB, MANDP2, MMP-9
48 H6 MTA1 NM_001203258, NM_004689 Metastasis associated 1
49 A7 MTA2 NM_004739 Metastasis associated 1 family, member 2 MTA1L1, PID
50 B7 MYC NM_002467 v-myc avian myelocytomatosis viral oncogene homolog MRTL, bHLHe39, c-Myc, MYCC
51 C7 NF1 NM_000267, NM_001042492, NM_001128147 Neurofibromin 1 NFNS, VRNF, WSS
52 D7 NF2 NM_000268, NM_016418, NM_181825, NM_181828, NM_181829, NM_181830, NM_181831, NM_181832, NM_181833 Neurofibromin 2 (merlin) ACN, BANF, SCH
53 E7 NFKB1 NM_001165412, NM_003998 Nuclear factor of kappa light polypeptide gene enhancer in B-cells 1 EBP-1, KBF1, NF-kB1, NF-kappa-B, NF-kappaB, NFKB-p105, NFKB-p50, NFkappaB, p105, p50
54 F7 NFKBIA NM_020529 Nuclear factor of kappa light polypeptide gene enhancer in B-cells inhibitor, alpha IKBA, MAD-3, NFKBI
55 G7 NOTCH1 NM_017617 Notch 1 AOS5, AOVD1, TAN1, hN1
56 H7 NTRK1 NM_001007792, NM_001012331, NM_002529 Neurotrophic tyrosine kinase, receptor, type 1 MTC, TRK, TRK1, TRKA, Trk-A, p140-TrkA
57 A8 NTRK3 NM_001007156, NM_001012338, NM_001243101, NM_002530 Neurotrophic tyrosine kinase, receptor, type 3 TRKC, gp145(trkC)
58 B8 PDGFRA NM_006206 Platelet-derived growth factor receptor, alpha polypeptide CD140A, PDGFR-2, PDGFR2, RHEPDGFRA
59 C8 PDGFRB NM_002609 Platelet-derived growth factor receptor, beta polypeptide CD140B, IBGC4, IMF1, JTK12, PDGFR, PDGFR-1, PDGFR1
60 D8 PLAU NM_001145031, NM_002658 Plasminogen activator, urokinase RP11-417O11.1, ATF, BDPLT5, QPD, UPA, URK, u-PA
61 E8 PLAUR NM_001005376, NM_001005377, NM_001301037, NM_002659 Plasminogen activator, urokinase receptor CD87, U-PAR, UPAR, URKR
62 F8 PTEN NM_000314 Phosphatase and tensin homolog 10q23del, BZS, CWS1, DEC, GLM2, MHAM, MMAC11, TEP1, PTEN
63 G8 RAF1 NM_002880 Raf-1 proto-oncogene, serine/threonine kinase CMD1NN, CRAF, NS5, Raf-1, c-Raf
64 H8 RARA NM_000964, NM_001024809, NM_001145301, NM_001145302 Retinoic acid receptor, alpha NR1B1, RAR
65 A9 RB1 NM_000321 Retinoblastoma 1 RP11-174I10.1, OSRC, PPP1R130, RB, p105-Rb, pRb, pp110
66 B9 RET NM_020630, NM_020975 Ret proto-oncogene CDHF12, CDHR16, HSCR1, MEN2A, MEN2B, MTC1, PTC-ELE1, RET51, RET
67 C9 RUNX1 NM_001001890, NM_001122607, NM_001754 Runt-related transcription factor 1 AML1, AML1-EVI-1, AMLCR1, CBFA2, EVI-1, PEBP2aB
68 D9 SERPINB5 NM_002639 Serpin peptidase inhibitor, clade B (ovalbumin), member 5 PI5, maspin
69 E9 SERPINE1 NM_000602 Serpin peptidase inhibitor, clade E (nexin, plasminogen activator inhibitor type 1), member 1 PAI, PAI-1, PAI1, PLANH1
70 F9 SYK NM_001135052, NM_001174167, NM_001174168, NM_003177 Spleen tyrosine kinase p72-Syk
71 G9 TAL1 NM_001287347, NM_001290403, NM_001290404, NM_001290405, NM_001290406, NM_003189 T-cell acute lymphocytic leukemia 1 SCL, TCL5, bHLHa17, tal-1
72 H9 TERT NM_001193376, NM_198253 Telomerase reverse transcriptase CMM9, DKCA2, DKCB4, EST2, PFBMFT1, TCS1, TP2, TRT, hEST2, hTRT
73 A10 TFE3 NM_001282142, NM_006521 Transcription factor binding to IGHM enhancer 3 RCCP2, RCCX1, TFEA, bHLHe33
74 B10 TFEB NM_001167827, NM_001271943, NM_001271944, NM_001271945, NM_007162 Transcription factor EB RP4-696P19.3, ALPHATFEB, BHLHE35, TCFEB
75 C10 TGFB1 NM_000660 Transforming growth factor, beta 1 CED, DPD1, LAP, TGFB, TGFbeta
76 D10 TGFBR1 NM_001130916, NM_004612 Transforming growth factor, beta receptor 1 RP11-96L7.1, AAT5, ACVRLK4, ALK-5, ALK5, ESS1, LDS1, LDS1A, LDS2A, MSSE, SKR4, TGFR-1, tbetaR-I
77 E10 THBS1 NM_003246 Thrombospondin 1 THBS, THBS-1, TSP, TSP-1, TSP1
78 F10 TIMP1 NM_003254 TIMP metallopeptidase inhibitor 1 RP1-230G1.3, CLGI, EPA, EPO, HCI, TIMP
79 G10 TIMP2 NM_003255 TIMP metallopeptidase inhibitor 2 CSC-21K, DDC8
80 H10 TLX1 NM_001195517, NM_005521 T-cell leukemia homeobox 1 HOX11, TCL3
81 A11 TNF NM_000594 Tumor necrosis factor DADB-70P7.1, DIF-alpha, TNFA, TNFSF2, TNF
82 B11 TNFRSF10B NM_003842, NM_147187 Tumor necrosis factor receptor superfamily, member 10b UNQ160/PRO186, CD262, DR5, KILLER, KILLER/DR5, TRAIL-R2, TRAILR2, TRICK2, TRICK2A, TRICK2B, TRICKB, ZTNFR9
83 C11 TNFRSF1A NM_001065 Tumor necrosis factor receptor superfamily, member 1A CD120a, FPF, MS5, TBP1, TNF-R, TNF-R-I, TNF-R55, TNFAR, TNFR1, TNFR1-d2, TNFR55, TNFR60, p55, p55-R, p60
84 D11 TNFRSF25 NM_001039664, NM_003790, NM_148965, NM_148966, NM_148967, NM_148970 Tumor necrosis factor receptor superfamily, member 25 RP4-650H14.2, APO-3, DDR3, DR3, LARD, TNFRSF12, TR3, TRAMP, WSL-1, WSL-LR
85 E11 TP53 NM_000546, NM_001126112, NM_001126113, NM_001126114, NM_001126115, NM_001126116, NM_001126117, NM_001126118, NM_001276695, NM_001276696, NM_001276697, NM_001276698, NM_001276699, NM_001276760, NM_001276761 Tumor protein p53 BCC7, LFS1, P53, TRP53
86 F11 TRADD NM_003789 TNFRSF1A-associated via death domain Hs.89862
87 G11 VEGFA NM_001025366, NM_001025367, NM_001025368, NM_001025369, NM_001025370, NM_001033756, NM_001171622, NM_001171623, NM_001171624, NM_001171625, NM_001171626, NM_001171627, NM_001171628, NM_001171629, NM_001171630, NM_001204384, NM_001204385, NM_001287044, NM_003376 Vascular endothelial growth factor A RP1-261G23.1, MVCD1, VEGF, VPF
88 H11 WT1 NM_000378, NM_001198551, NM_001198552, NM_024424, NM_024426 Wilms tumor 1 AWT1, EWS-WT1, GUD, NPHS4, WAGR, WIT-2, WT33

Primer specificity

  • Primer blast 및 자사 bioinformatics tool을 이용한 타겟 특이적인 primer 디자인
  • Self primer-dimer 형성 서열 배제
  • Dissociation curve에서 단일 peak 확인
  • Gel 전기영동에서 단일밴드 확인
  • 70 ~ 150 bp의 짧은 amplicon size
fig 1.
Figure 1. Primer validation result (example. CCND3 gene).



Wide linear dynamic range & high PCR efficiency

  • 10 ~ 1010 copies의 광범위한 증폭 범위
  • MIQE guide line을 준수하는 90 ~ 110%의 qPCR 증폭 효율
fig 2.
Figure 2. Dynamic range & PCR efficiency (example. AKT gene).

qPCR template로 purified DNA를 10배씩 serial dilution 하여 사용하였으며, 2번 반복 실험되었습니다.




MIQE 가이드라인에 따른 qPCR Service 과정

qPCR Service는 MIQE 가이드라인을 따르고 있으며, 숙련된 전문가들에 의해 SCI 논문에 그대로 활용 가능한 정확하고 신뢰성 있는 분석 결과를 빠른 기간 내에 제공해 드립니다.

* The MIQE Guidelines [Bustin, S.A., et al. 2009. The MIQE Guidelines: Minimum Information for Publication of Quantitative Real-Time PCR Experiments, Clinical Chemistry 55:4, 611-622]

  • Step 1 : RNA Qualitiy Check
    의뢰된 RNA 샘플은 qPCR에 적합한지 판단하기 위해 Caliper사의 LabChip™GX를 이용하여 RNA Quality Index (RQI)를 측정합니다. RQI를 통과하였을 경우 다음 과정을 진행하며, 적합하지 않을 경우 고객과 상담 후 다음 단계를 진행합니다.
  • Step 2 : cDNA Synthesis (Reverse transcription)
    분석에 적합한 RNA 샘플은 cDNA로 합성하게 됩니다. 고온에서도 안정적인 합성효율을 보이는 Accupower® Rocketscript™ Cycle RT Premix with oligo(dT)20를 이용하여 cDNA 합성을 진행합니다.
  • Step 3 : qPCR
    cDNA는 Accupower® 2X GreenStar ™ qPCR Master Mix와 검증된 타겟 특이 primer가 포함되어 있는 Exicycler™ 96 Real-Time Quantitative Thermal Block 을 이용하여 qPCR을 진행합니다.
  • Step 4 : Data Analysis
    qPCR data는 자체 개발한 분석 소프트웨어로 분석한 후 엑셀로 변환하여 제공하며, raw Ct 값, melting curve analysis data, p-value, fold change, scatter plots, volcano plots, heatmap image 등도 분석결과에 포함됩니다.

fig 3.

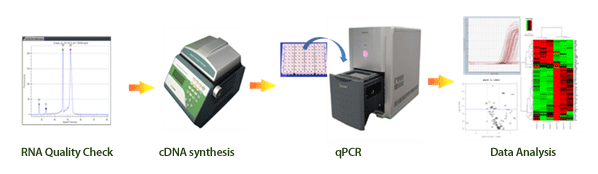

Figure 3. qPCR work flow.


Manuals

• User's guide_AccuPower® qPCR Array System Human Cancer Panel

MSDS

• MSDS_AccuPower® qPCR Array System Human Cancer Panel

Ordering Information

Cat. No. Product Description Gene Price
S-6042-PH1 AccuPower® qPCR Array System: Human Cancer qPCR panel kit 88 ₩280,000
S-6042-S200 AccuPower® qPCR Array System: Single gene qPCR primer 1 ₩150,000
1 Panel당 가격이며, 대량 구매 시 할인 적용 가능하니, 주문서를 작성하여 이메일 (qPCRarray@bioneer.com)로 보내주시면 조속한 시일내로 견적서를 발송해 드리도록 하겠습니다.
*VAT 별도입니다
