100 bp Plus DNA Ladder

100 bp Plus DNA Ladder의 size range는 100 ∼ 10,200 bp로써, 이 범위 내에 해당되는 double strand DNA의 size를 구분하는 경우에 사용할 수 있습니다. 100 bp부터 1,000 bp까지 100 bp씩 증가되는 10개의 double strand DNA fragments와 1,200 bp, 1,600 bp, 2,000 bp, 2,961 bp, 4,000 bp, 5,007 bp, 5,991 bp, 8,000 bp 그리고 10,200 bp size의 double strand DNA fragments로 조성되어 있습니다. 또한 쉽게 구분할 수 있도록 500 bp와 1,000 bp 그리고 2,000 bp DNA fragments는 나머지 DNA fragments에 비해 2 ∼ 3배 더 강하게 나타납니다

₩70,000
카탈로그 번호
D-1035-CFG
Features and Benefits

Convenience: Loading dye가 첨가되어 있어서 사용이 편리합니다.

Robust stability: 냉장/냉동 보관 없이 상온에서 6개월 이상 사용할 수 있습니다.

Reproducibility: 재현성 있는 결과를 위해 바이오니아의 전 제품은엄격한 ISO 품질 시스템하에서 생산됩니다.

Note

The DNA ladder can be applied directly onto an agarose gel.
There is no need to heat before loading. Repeated freezing and thawing should be avoided.


Specifications

Concentration : 80.7 ng/μl
Recommended loading: 3.0 ~ 4.0 μl / 5 mm lane width
Typical Number of lanes: 125-166 (5 mm lane width)
Size range (bp): 100 - 10,200
Number of bands: 19
Supplied in: 10 mM Tris-HCl (pH 8.0), 1 mM EDTA, 2.5% Ficoll, 0.005% Bromphenol Blue, 0.005% Xylene Cyanol
Storage: -20°C

figure1

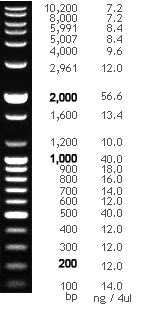

4㎕ on 1.0% TBE agarose gel (Length : 8.5 cm, stained with Ethidium Bromide).



Nuclease Activity Test

figure2

Lane 1, 2, 3: 100 bp Plus DNA Ladder was stored at 4°C for 16 hours and volume loaded at 2 μl, 3 μl, and 5 μl.
Lane 4, 5, 6: 100 bp Plus DNA Ladder was stored at 37°C for 16 hours and volume loaded at 2 μl, 3 μl, and 5 μl.
1.0% TBE agarose gel was stained with Ethidium Bromide.


Manual

• Manual_100bp Plus DNA Ladder


MSDS

• MSDS_100 bp Plus DNA Ladder


Brochure

• 100 bp Plus DNA Ladder Brochure


Quality Assurance

Bioneer is the holder of Quality Management System Certificates for the following standards.

• ISO 9001 – certificate

• EN ISO 13485 - certificate


Cat. No. Product Description Price Add to Cart
D-1035 100 bp Plus DNA Ladder, 500 µl (80.7 ng/µl) ₩70,000 add cart
D-1036 100 bp Plus DNA Ladder, 2,500 µl (500 µl x 5) ₩240,000 add cart
